Bmotiontech | SKU:
VAC-ELW-KF40-45
Sold out

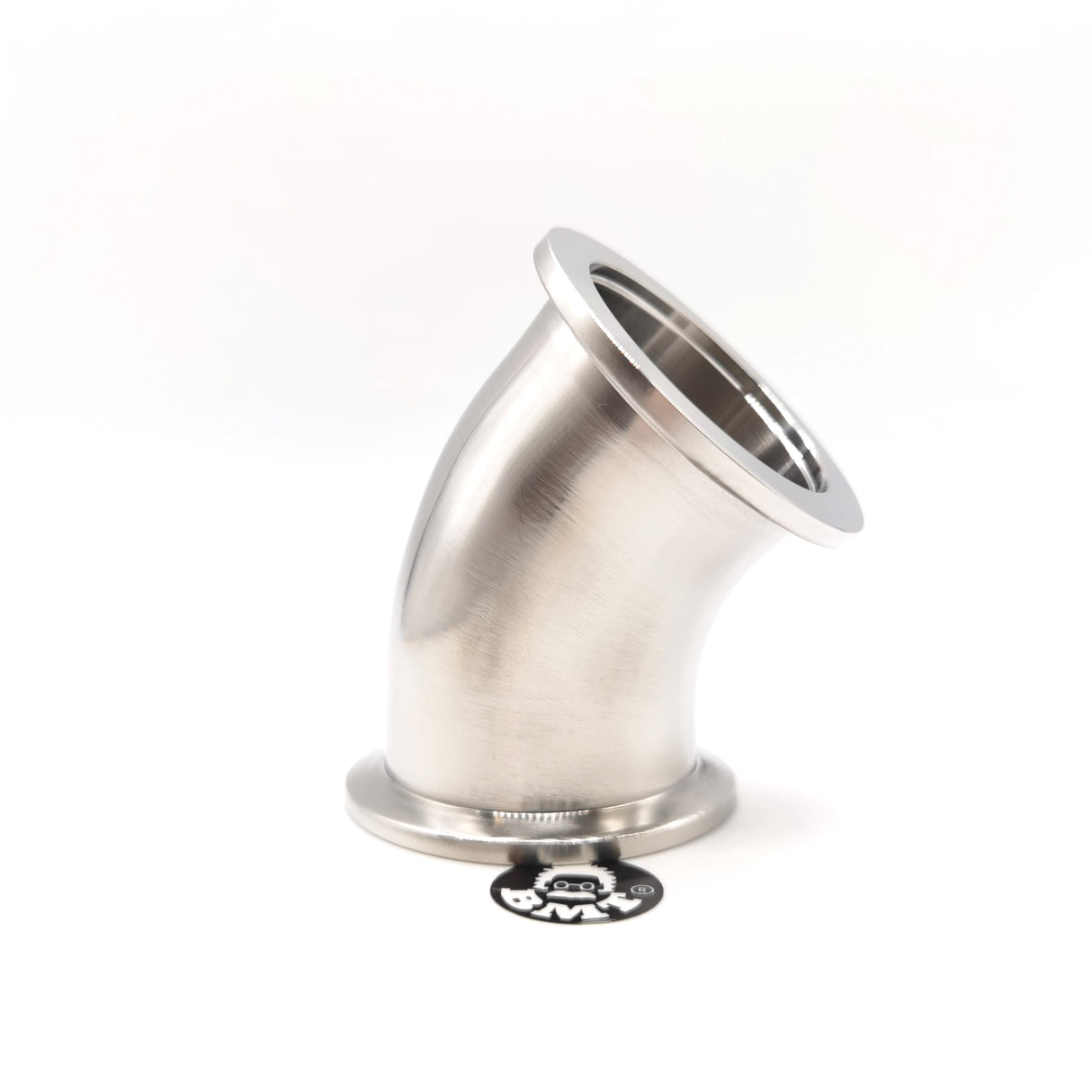

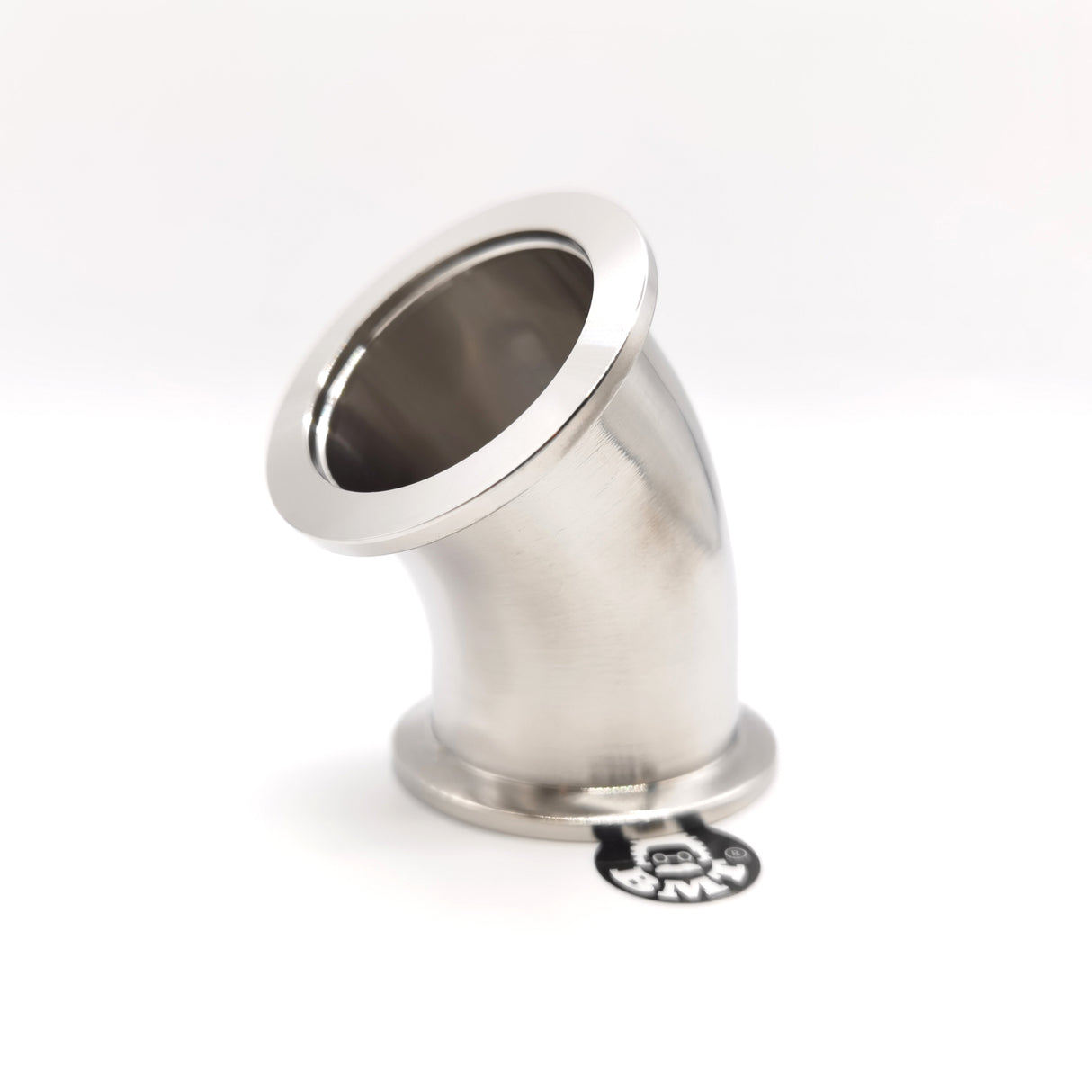

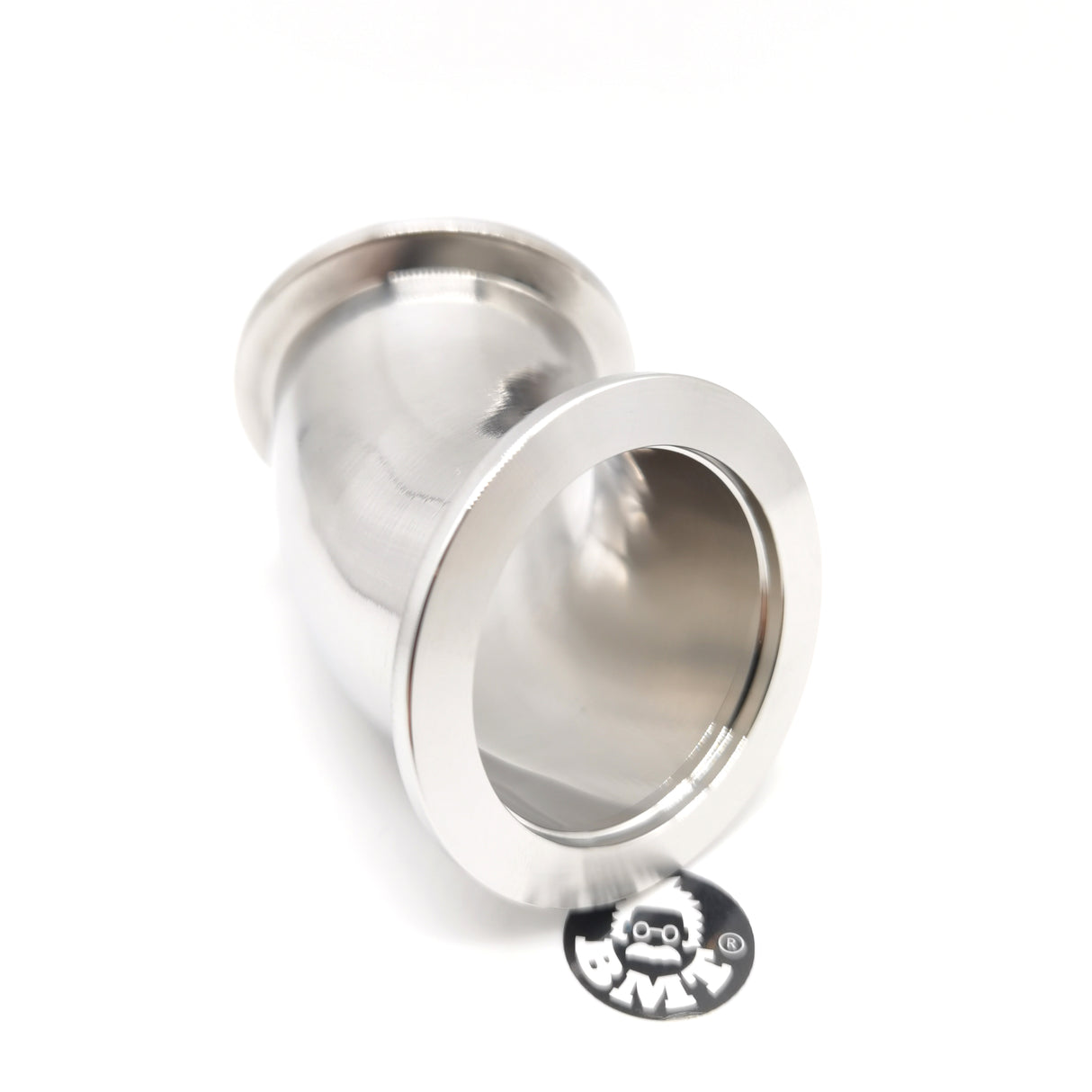

Elbow, 45 degree, KF40 flange, Economy grade
$22.80
Unit price
/
Unavailable
Shipping calculated at checkout.
Elbow, 45 degree, KF40 flange, Economy grade is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Typically ships within 24 hours
Description
Description
Description
- Economy grade KF40 Elbow
- Made of stainless steel 304
- Good for general vacuum purpose
Background info
- Elbow 45 Degrees KF-40 Vacuum Fittings, ISO-KF Flange Size NW-40, Stainless Steel
- These KF-4 45 degree elbow vacuum fittings follow ISO-KF standards and have a flange size of NW-40. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant stainless steel.
Specification
KF-40 Elbow 45 Degrees
ISO-KF Flange Size: NW-40
