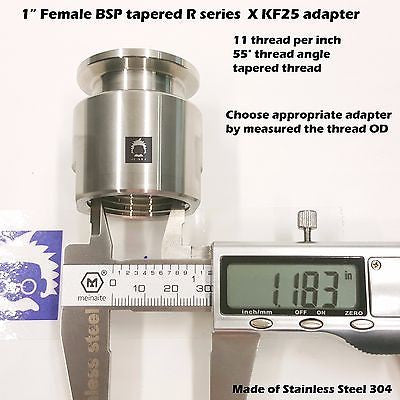

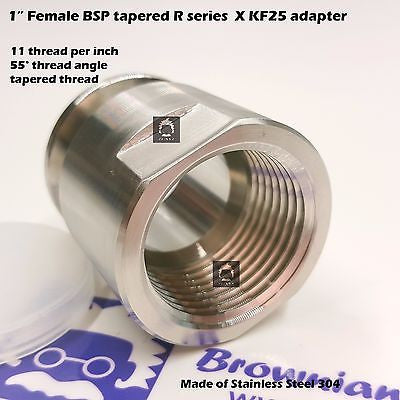

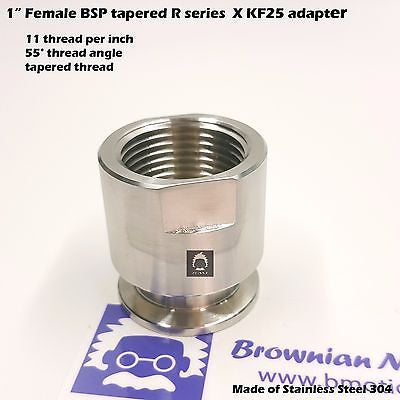

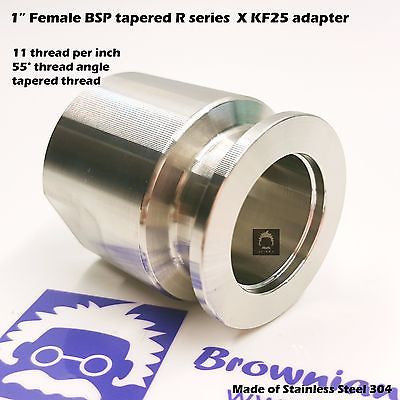

1" Female BSP R series X KF-25 flange stainless steel vacuum adapter
1" Female BSP R series X KF-25 flange stainless steel vacuum adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Typically ships within 24 hours
1" Female BSP R series X KF-25 flange stainless steel vacuum a...
Description
Description
Brand new item
-
Female BSP R series or PT 1" x KF25 Flange Stainless Steel 304 Vacuum adapter
-
11 thread per inch
-
55 ° thread angle
-
tapered thread / self sealing with telfon tape or liquid sealant
-
with HEX nut for easy tigthening
-
PT / BSP-T / R Threads is commonly used in Europe, Austrialia, UK, Japan and China
-
End to End Length 4cm
Adapter KF-25 to 1" Female BSP-Tapered R series adapter, Flange Size ISO-KF NW-25, Stainless Steel
These adapters are KF-25 to 1" BSPT PT Female pipe thread. They are commonly used to make connections between ISO-KF and BSPT-male pipe. The ISO-KF flanges are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant stainless steel.
Brand new item
-
Female BSP R series or PT 1" x KF25 Flange Stainless Steel 304 Vacuum adapter
-
11 thread per inch
-
55 ° thread angle
-
tapered thread / self sealing with telfon tape or liquid sealant
-
with HEX nut for easy tigthening
-
PT / BSP-T / R Threads is commonly used in Europe, Austrialia, UK, Japan and China
-
End to End Length 4cm
Adapter KF-25 to 1" Female BSP-Tapered R series adapter, Flange Size ISO-KF NW-25, Stainless Steel
These adapters are KF-25 to 1" BSPT PT Female pipe thread. They are commonly used to make connections between ISO-KF and BSPT-male pipe. The ISO-KF flanges are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant stainless steel.
