Bmotiontech | SKU:
FBSPT-KF25-3
Sold out
3/8" Female BSP R series X KF-25 flange stainless steel vacuum adapter
$15.00
Unit price
/
Unavailable
Shipping calculated at checkout.
3/8" Female BSP R series X KF-25 flange stainless steel vacuum adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Typically ships within 24 hours
Description
Description
-

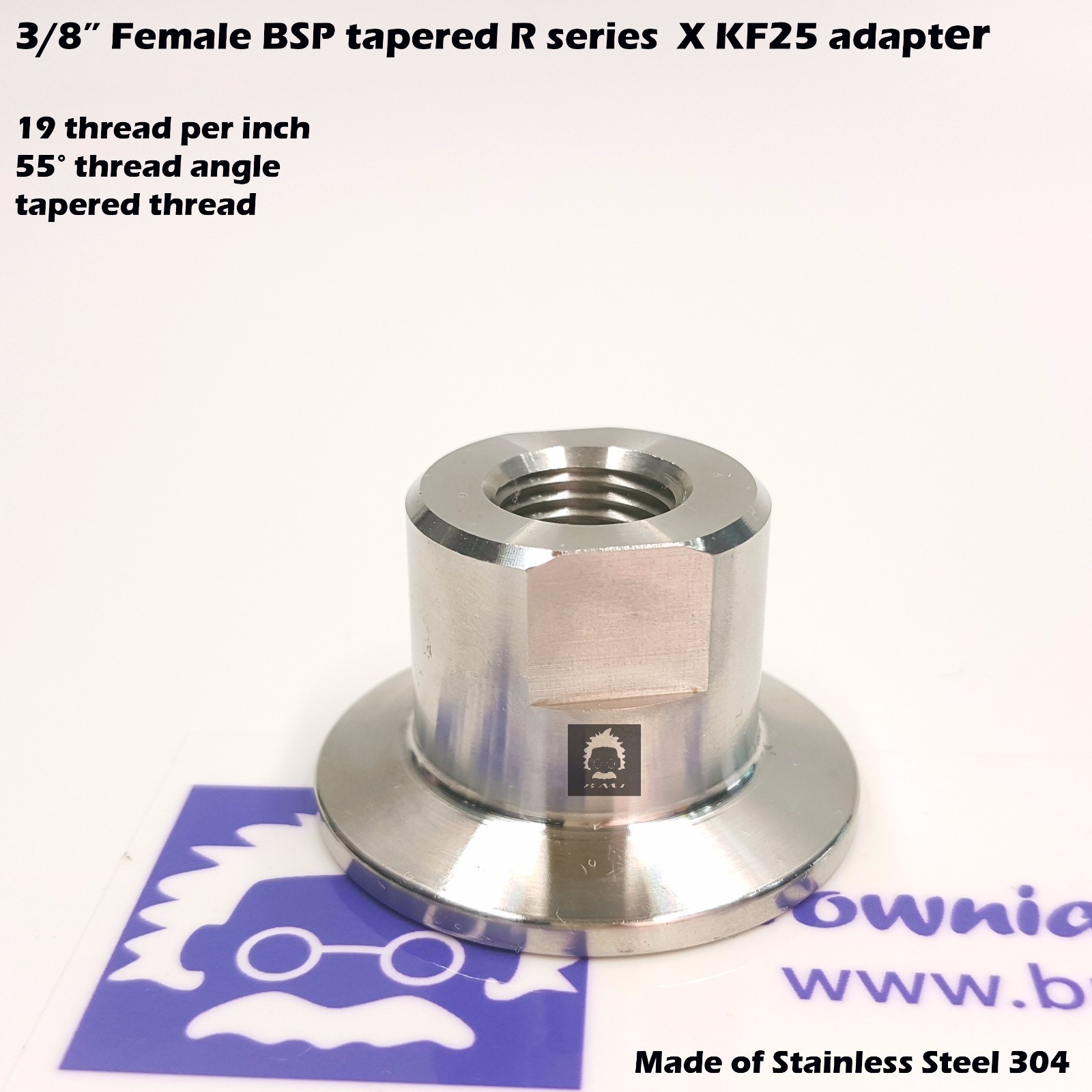

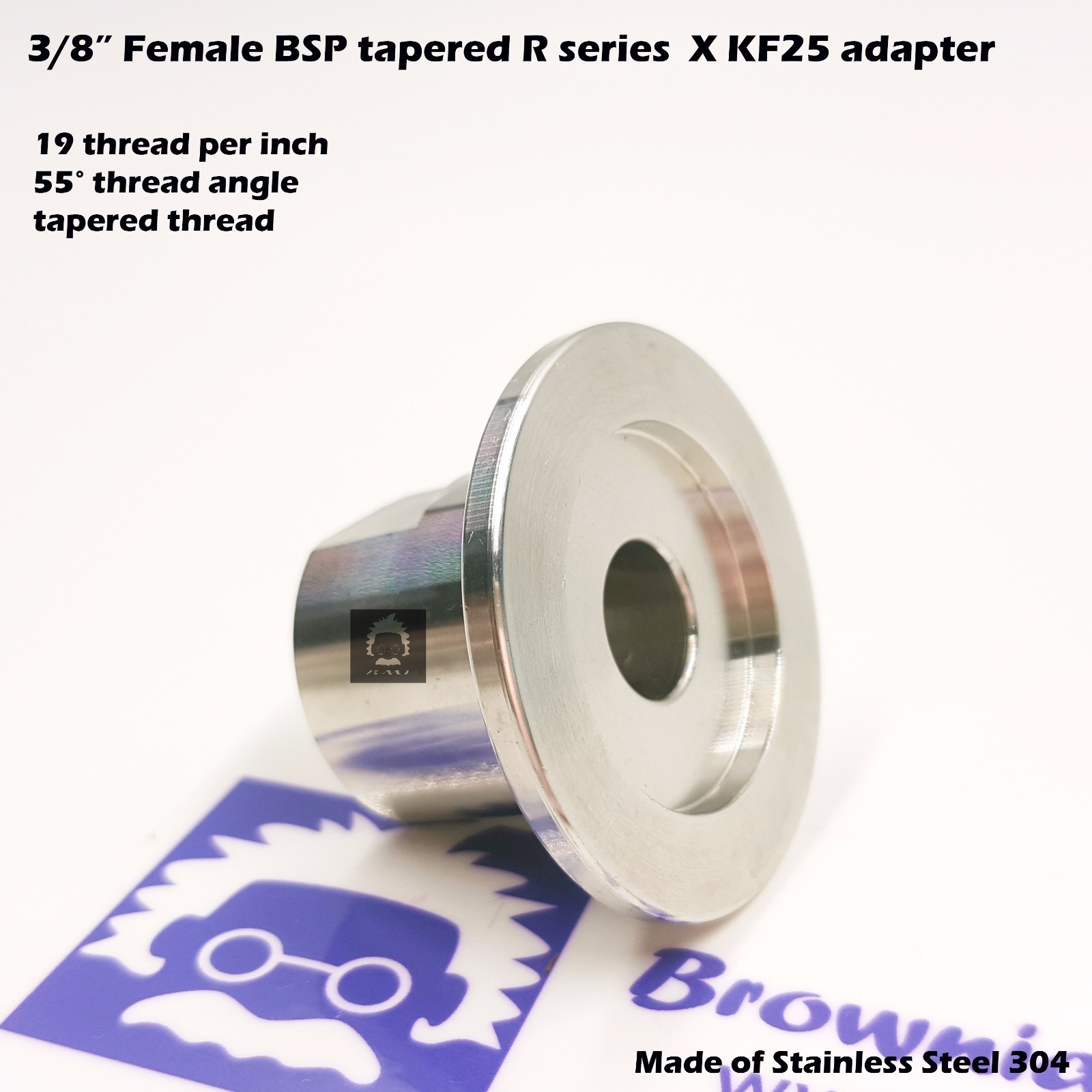

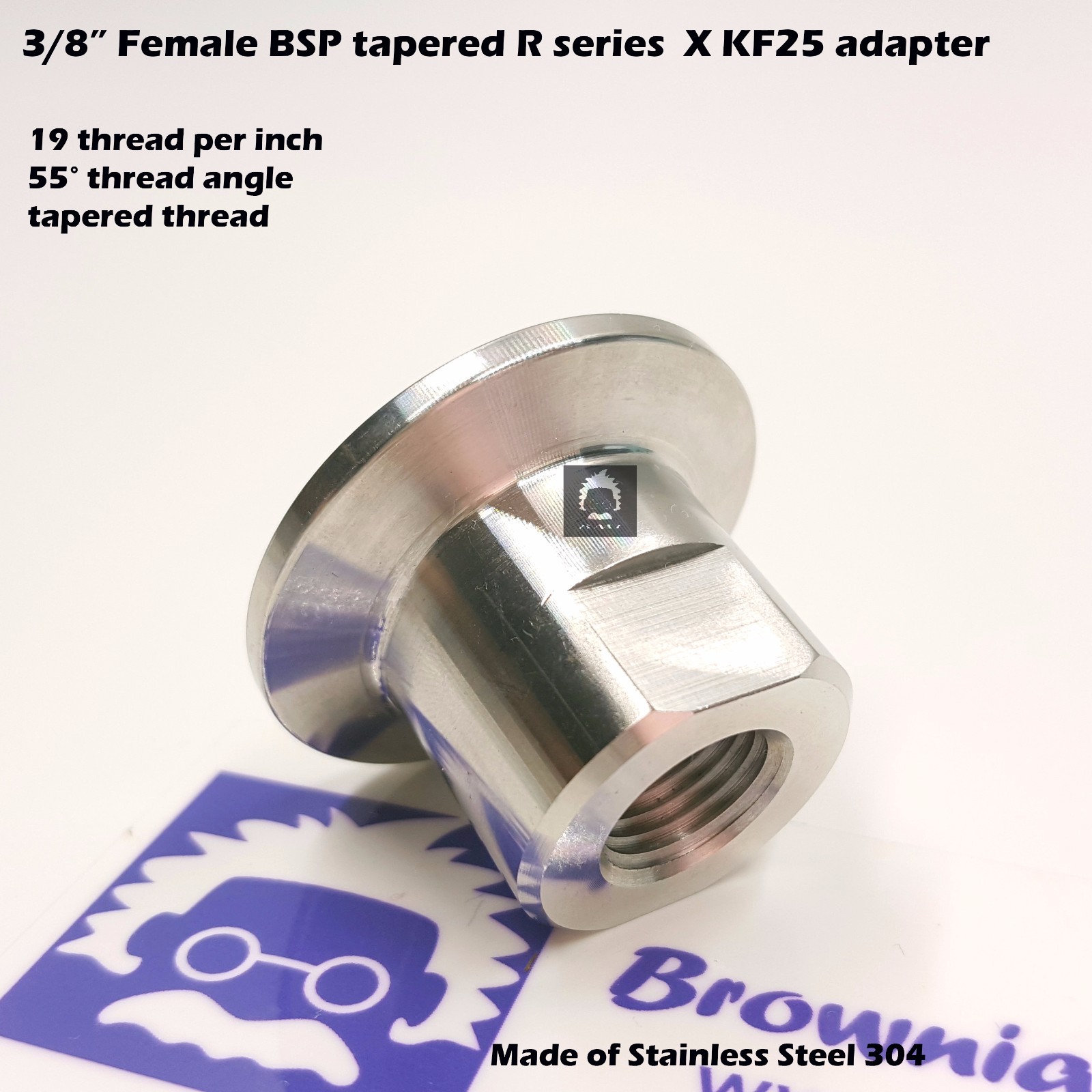

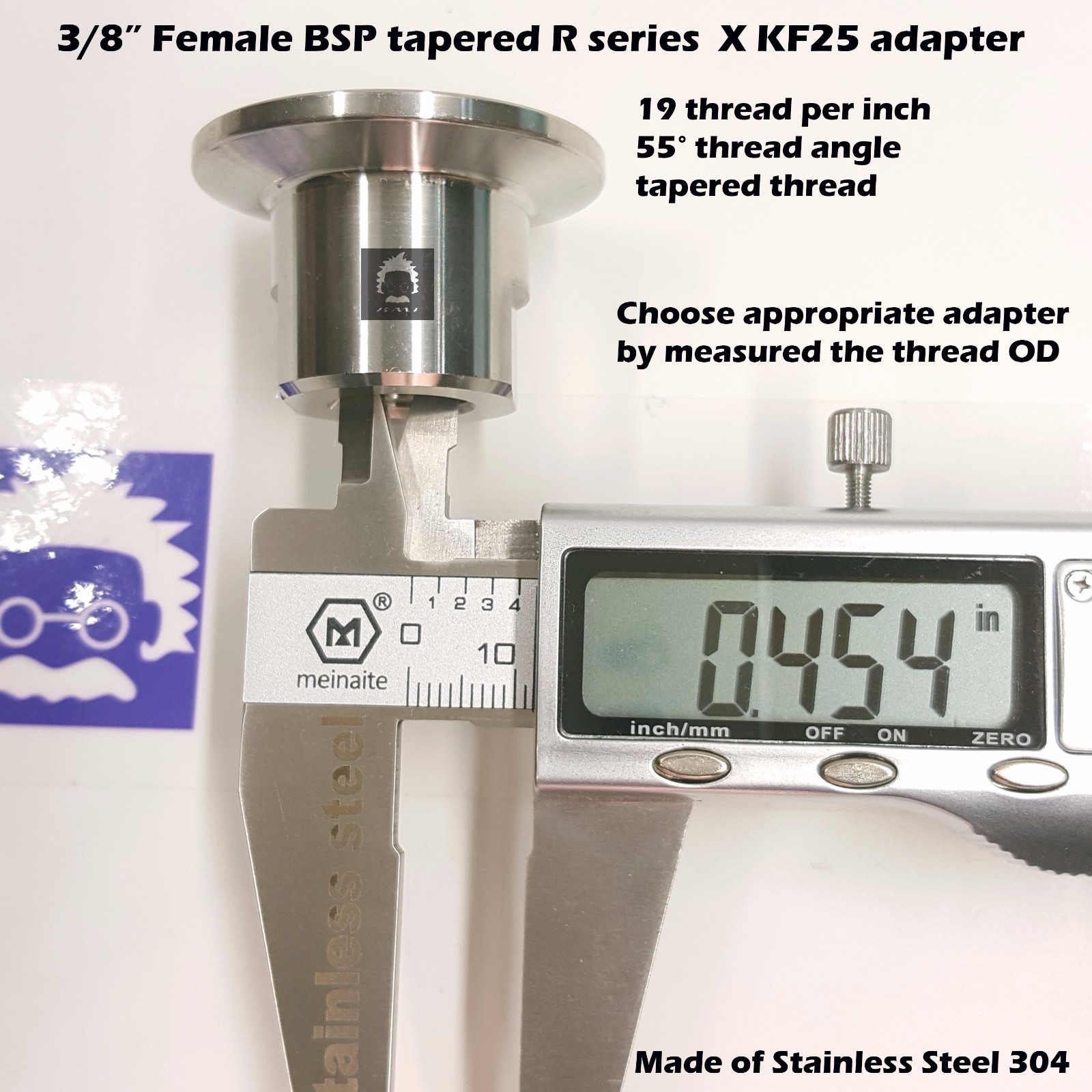

Female BSPT Rc series or PT 3/8" x KF25 Flange Stainless Steel 304 Vacuum adapter
-
19 threads per inch
-
55 ° thread angle
-
tapered thread / self sealing with telfon tape or liquid sealant
-
with HEX nut for easy tigthening
-
PT / BSP-T / R Threads are commonly used in Europe, Australia, UK, Japan, and China.
-
End to End Length 4cm
Adapter KF-25 to 3/8" Female BSP-Tapered R series adapter, Flange Size ISO-KF NW-25, Stainless Steel
These adapters are KF-25 to 3/8" BSPT PT Female pipe thread. They are commonly used to connect ISO-KF and BSPT-male pipes. The ISO-KF flanges are often called quick-flange fittings because they are easy to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosion-resistant stainless steel.
